ICON is proud to introduce a range of 3-inch Complete Suspension System “Stage” kits for 2021 and newer Ford F-150 Tremor. All of these kits feature performance-proven ICON 2.5 Vehicle Series Front Coilovers and Rear Shocks and Tubular Front Upper Control Arms with ICON’s patented Delta Joint Pro.
.png)
All Stages feature ICON 2.5 VS Front Coilovers which provide a 20% increase in travel over stock while imparting superior ride quality and off-road handling. ICON Vehicle Series shocks are custom-tuned for each specific vehicle application to maximize suspension performance. All stages also feature ICON Tubular or Billet Front Upper Control Arms to provide bind-free travel as well as caster correction to maintain superior drivability. The Delta Joint Pro is greaseable, serviceable, and carries a 1-year limited warranty.
Each Stage offers key, incremental performance enhancements to meet any level of budget or performance expectations. Higher Stages feature larger rear shocks, remote shock reservoirs and both manual compression adjustment (CDCV) or the fully automatic, on-the-fly tuning of the incredible CDEV system.
Tech Notes
The following tech and fitment data applies to all of these Suspension System Stages:
OEM Wheels & Tires Firment: Yes
Recommended Aftermarket Wheels: ICON Alloys | 17x8.5” w/ 5.00” Backspace / 6mm Offset
Recommended Aftermarket Wheels: ICON Alloys | 18x9” w/ 5.25” Backspace / 6mm Offset
Recommended Aftermarket Wheels: ICON Alloys | 20x9” w/ 5.625” Backspace / 16mm Offset
Recommended Aftermarket Tires: 34” x 12.50” (Larger tires may fit but fender trimming and modifications will be required.)
APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK-EQUIPPED VEHICLE
APPLICATION NOTE #129
ICON UCA required
Ships in multiple boxes
Will not work on CCD-equipped vehicles
TECH NOTE: ONLY compatible with F-150 Tremor
CALL OUR TEAM TODAY FOR MORE INFO: 877-978-8197
.png)

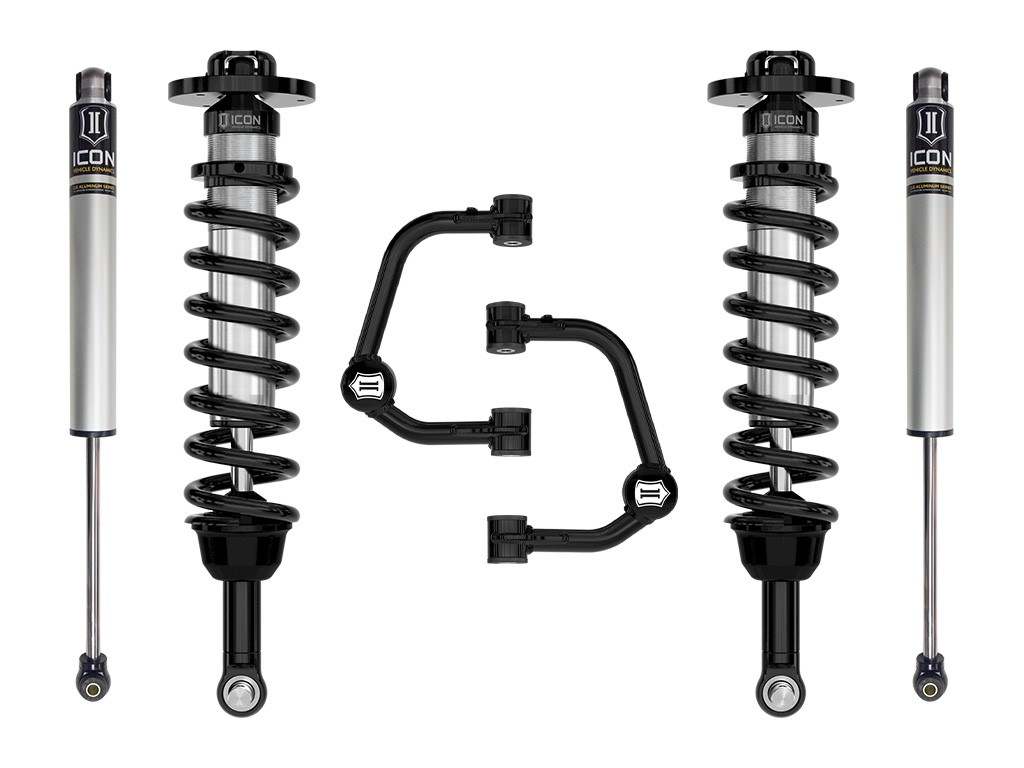

STAGE 1
.png)
K93161T 21-23 FORD F150 TREMOR 4WD 2.5-3"STAGE 1 SUSP SYSTEM TUBULAR
K93161 21-23 FORD F150 TREMOR 4WD 2.5-3" STAGE 1 SUSP SYSTEM BILLET
Our basic performance stage for the Tremor, featuring internal reservoir front coilovers and 2.0 rear shocks.
SYSTEM INCLUDES
• 91723 21-23 F150 4WD 3" 2.5 VS IR COILOVER KIT
• 98522DJ 21-23 F150 TUBULAR UCA DJ PRO KIT
or 98523DJ 21-23 F150 BILLET UCA DJ PRO KIT
• 96518 09-23 F150 2/4WD 04-08 F150 4WD REAR VS 2.0 IR (2)
KEY FEATURES:
• Increased wheel travel and ride quality over stock with no change in towing capacity
• Utilizes the NEW Delta Joint Pro joint
• Vehicle-specific tuned front and rear shocks for superior damping and vehicle control
• PTFE lined spherical bearings and application-specific mounting hardware
• Adjustable Coilovers from 2.5-3" of lift height
• 6061 Aircraft grade aluminum CNC machined components
• Corrosion-resistant CAD plated coilover shock body with 7/8 shaft
• High-strength alloy CNC machined lower bar pin
• FK rod end bearings for extended longevity and minimal deflection
• 2.0 aluminum body rear IFP shock with 5/8" polished shaft
•100% Bolt-on system - no drilling, cutting, or welding necessary for install
• Tubular UCA for added strength, durability, and an additional degree of caster for better drivability
STAGE 2
K93162T 21-23 FORD F150 TREMOR 4WD 2.5-3"STAGE 2 SUSP SYSTEM TUBULAR
K93162 21-23 FORD F150 TREMOR 4WD 2.5-3" STAGE 2 SUSP SYSTEM BILLET
Stage 2 ups the ante with the addition of 2.5 VS rear shocks with piggyback reservoirs. The increased fluid capacity and surface area will provide superior heat dissipation.
SYSTEM INCLUDES
• 91723 21-23 F150 4WD 3" 2.5 VS IR COILOVER KIT
• 98522DJ 21-23 F150 TUBULAR UCA DJ PRO KIT
or 98523DJ 21-23 F150 BILLET UCA DJ PRO KIT
• 97721P 21-23 F150 4WD TREMOR REAR 2.5 VS PB PAIR
KEY FEATURES:
• Increased wheel travel and ride quality over stock with no change in towing capacity
• Utilizes the NEW Delta Joint Pro joint
• Vehicle-specific tuned front and rear shocks for superior damping and vehicle control
• PTFE-lined spherical bearings and application-specific mounting hardware
• Adjustable coilovers from 2.5-3" of lift height
• 6061 Aircraft grade aluminum CNC machined components
• Corrosion-resistant CAD plated coilover shock body with 7/8 shaft
• High-strength alloy CNC machined lower bar pin
• FK rod end bearings for extended longevity and minimal deflection
• 2.5 Series rear piggyback reservoir shocks with 7/8" shaft
• 100% Bolt-on system - no drilling, cutting, or welding necessary for install
• Tubular UCA for added strength, durability, and an additional degree of caster for better drivability
STAGE 3
K93163T 21-23 FORD F150 TREMOR 4WD 2.5-3"STAGE 3 SUSP SYSTEM TUBULAR
K93163 21-23 FORD F150 TREMOR 4WD 2.5-3" STAGE 3 SUSP SYSTEM BILLET
Stage 3 is a balanced system with front and rear reservoirs for increased shock fluid capacity. The improved heat dissipation will maintain damping performance through longer, faster, rougher off-road sections without fading.
SYSTEM INCLUDES
• 91824 21-23 F150 4WD 3" 2.5 VS RR COILOVER KIT
• 98522DJ 21-23 F150 TUBULAR UCA DJ PRO KIT
or 98523DJ 21-23 F150 BILLET UCA DJ PRO KIT
• 97721P 21-23 F150 4WD TREMOR REAR 2.5 VS PB PAIR
KEY FEATURES:
• Increased wheel travel and ride quality over stock with no change in towing capacity
• Utilizes the NEW Delta Joint Pro joint
• Vehicle-specific tuned front and rear shocks for superior damping and vehicle control
• PTFE-lined spherical bearings and application-specific mounting hardware
• Adjustable coilovers from 2-3.25” of lift height
• 6061 Aircraft grade aluminum CNC machined components
• Corrosion-resistant CAD plated coilover shock body with 7/8 shaft
• High-strength alloy CNC machined lower bar pin
• FK rod end bearings for extended longevity and minimal deflection
• 2.5 Series rear piggyback reservoir shocks with 7/8" shaft
• 100% Bolt-on system - no drilling, cutting, or welding necessary for install
• Tubular UCA for added strength, durability, and an additional degree of caster for better drivability
STAGE 4
K93164T 21-23 FORD F150 TREMOR 4WD 2.5-3"STAGE 4 SUSP SYSTEM TUBULAR
K93164 21-23 FORD F150 TREMOR 4WD 2.5-3" STAGE 4 SUSP SYSTEM BILLET
Stage 4 lets you dial in your suspension performance with ICON's Compression Damping Control Valve (CDCV) on each shock, allowing manual adjustability at all four corners.
SYSTEM INCLUDES
• 91824C 21-23 F150 4WD 3" 2.5 VS RR CDCV COILOVER KIT
• 98522DJ 21-23 F150 TUBULAR UCA DJ PRO KIT
or 98523DJ 21-23 F150 BILLET UCA DJ PRO KIT
• 97721CP 21-23 F150 4WD TREMOR REAR 2.5 VS PB CDCV PAIR
KEY FEATURES:
• Increased wheel travel and ride quality over stock with no change in towing capacity
• Utilizes the NEW Delta Joint Pro joint
• Vehicle-specific tuned front and rear shocks for superior damping and vehicle control
• PTFE lined spherical bearings and application-specific mounting hardware
• Adjustable coilovers from 2.5-3" of lift height
• 6061 Aircraft grade aluminum CNC machined components
• Corrosion-resistant CAD-plated coilover shock body with 7/8 shaft
• High-strength alloy CNC machined lower bar pin
• FK rod end bearings for extended longevity and minimal deflection
• 2.5 Series rear piggyback reservoir shocks with 7/8" shaft
• 100% Bolt-on system - no drilling, cutting, or welding necessary for install
• Tubular UCA for added strength, durability, and an additional degree of caster for better drivability
• 2.5 remote reservoir shocks with Icon CDC Valve allow for quick and easy end-user compression adjustment.
STAGE 5
K93165T 21-23 FORD F150 TREMOR 4WD 2.5-3"STAGE 5 SUSP SYSTEM TUBULAR
K93165 21-23 FORD F150 TREMOR 4WD 2.5-3" STAGE 5 SUSP SYSTEM BILLET
Stage 5 has the incredible CDEV system, ICON's award-winning technology for electronically controlling shock performance, on the fly and with lightning-fast, reactive adjustment. The ICON Intelligent Control (IIC) system reacts to G-inputs and commands shock adjustments in milliseconds to react to any situation in real-time.
SYSTEM INCLUDES
• 91824E 21-23 F150 4WD 3" 2.5 VS RR CDEV COILOVER KIT
• 98522DJ 21-23 F150 TUBULAR UCA DJ PRO KIT
or 98523DJ 21-23 F150 BILLET UCA DJ PRO KIT
• 93500 15-23 F150 & 17-22 FSD IIC INSTALL KIT
• 97721EP 21-23 F150 4WD TREMOR REAR 2.5 VS PB CDEV PAIR
KEY FEATURES:
• Increased wheel travel and ride quality over stock with no change in towing capacity
• Utilizes the NEW Delta Joint Pro joint
• Vehicle-specific tuned front and rear shocks for superior damping and vehicle control
• PTFE-lined spherical bearings and application-specific mounting hardware
• Adjustable coilovers from 2.5-3" of lift height
• 6061 Aircraft grade aluminum CNC machined components
• Corrosion-resistant CAD-plated coilover shock body with 7/8 shaft
• High-strength alloy CNC machined lower bar pin
• FK rod end bearings for extended longevity and minimal deflection
• 2.5 Series rear piggyback reservoir shocks with 7/8" shaft
• 100% Bolt-on system - no drilling, cutting, or welding necessary for install
• Tubular UCA for added strength, durability, and an additional degree of caster for better drivability
• ICON's CDE Valve technology allows for in-vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
