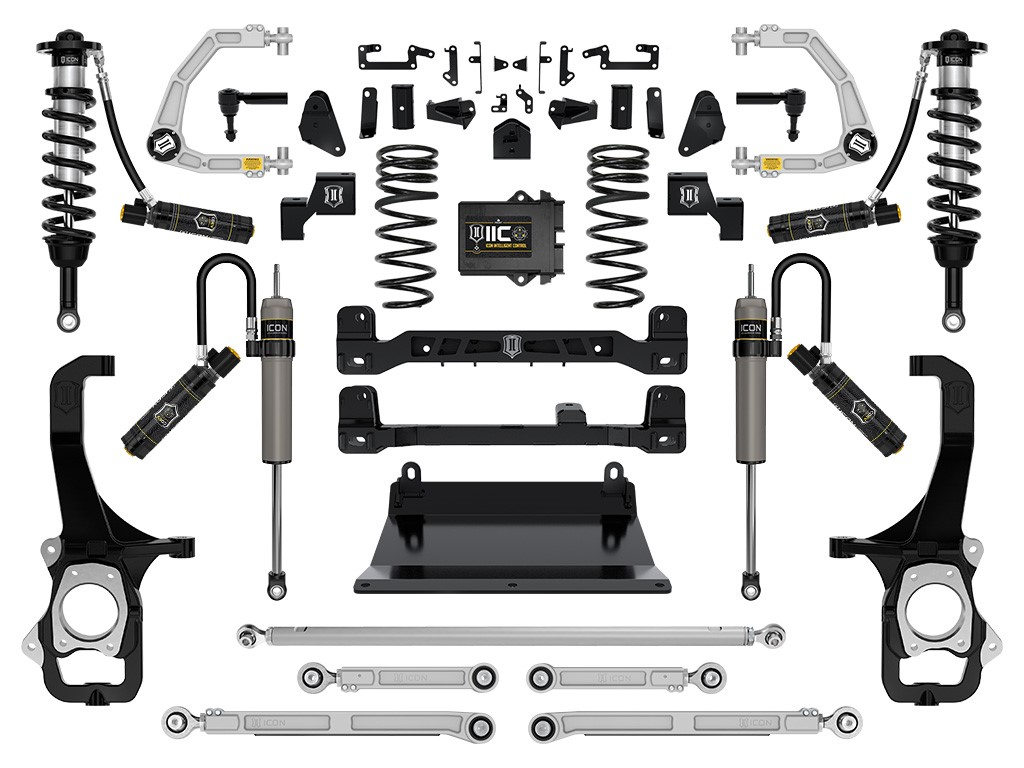

New Product: 2022-23 Toyota Tundra 6in Suspension Systems — ICON is proud to introduce a range of 6-inch Complete Suspension System "Stage" kits for 2022 and newer Toyota Tundra. All feature our high clearance 4-inch drop front crossmember kit including a differential skid plate and ductile iron steering knuckles. The cross member and knuckles drop the front differential 4 inches to preserve CV-joint operating angles, achieving maximum travel while being safe on components and providing great handling characteristics both on- and off-road.

We've pre-configured nine Stages of suspension systems to meet just about any level of performance expectations and budget. Spacer-based Stage 1 retains the stock front coilovers and rear springs to economically fit up to 37" tires. At the other end of the spectrum, our fully loaded Stage 9 features a full complement of billet control arms along with ICON 2.5 VS Coilovers and Shocks featuring cutting-edge CDEV electronic performance technology. Every Stage of our 6-inch Tundra Systems includes all of the necessary drop brackets, spacers, or mounts needed to allow bind-free movement of both the front and rear suspension to coax maximum performance out of every component in the kit.

KEY FEATURES

All ICON 6-Inch Subframe Suspension Systems for 2022 and newer Toyota Tundra feature:

• Designed to fit 37" tires with full articulation (larger tires may fit but fender trimming and modifications will be required)

• Optimized suspension geometry nearly eliminates the bump steer found in stock Tundras

• Maintains factory track width

• Hight clearance front crossmembers and front skid plate, CNC Laser Cut and brake-formed from 1/4-inch steel plate, provides 6" front suspension lift with only 4" of crossmember drop

• Single piece high-strength ductile iron steering knuckles

• Sway bar drop brackets to reduce bind in OE sway bar links

• Front and rear heavy-duty bump stop brackets

• Includes high angle outer tie-roads with durable, metal on metal greaseable tie rod ends

• Replaceable steering stops

• Improved rear sway bar links and mounts, and rear track bar bracket to reduce bind in the rear suspension

See additional equipment and more detailed information for each of the Nine Stages below.

TECH NOTES

The following tech and fitment data applies to all of these Suspension System Stages:

• OEM Wheels & Tires Fitment: No

• Recommended Aftermarket Wheels: ICON Alloys | 20x9" w/ 5.625” Backspace / 16mm Offset

• Recommended Aftermarket Tires: 37" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)

• APPLICATION NOTE #85: ADVERTISED LIFT HEIGHT RANGES ARE FOR A STOCK-EQUIPPED VEHICLE. INCREASING WEIGHT OF VEHICLE DUE TO ACCESSORIES WILL ALTER LIFT RANGE.

• APPLICATION NOTE #142: NOT COMPATIBLE WITH TUNDRAS EQUIPPED WITH LOAD-LEVELING REAR HEIGHT CONTROL AIR SUSPENSION.

• APPLICATION NOTE #144: NOT COMPATIBLE WITH TRD PRO (applies to Stage 1 only)

• APPLICATION NOTE #154: NOT COMPATIBLE WITH TUNDRA SR5 EQUIPPED WITH TRD SPORT PACKAGE (applies to Stage 1 only)

• APPLICATION NOTE #155: MAY REQUIRE RECALIBRATION OF TOYOTA SAFETY SENSE SYSTEM AFTER INSTALL

• APPLICATION NOTE NOT COMPATIBLE WITH AVS-equipped vehicles

• Ships in multiple boxes

Keep scrolling to see each of the Nine Stages or use the download buttons below to grab all of the important product information, data, images, and more to add these items to your website and inform your customers!

Stage 1

K53271     22-23 TOYOTA TUNDRA 6" STAGE 1 SUSPENSION SYSTEM

SYSTEMS INCLUDE

• 51010    22-23 TUNDRA FRONT BOX KIT 1*

• 51011    22-23 TUNDRA FRONT BOX KIT 2*

• 51012    22-23 TUNDRA REAR BOX KIT*

• 51014    22-23 TUNDRA FRONT KNUCKLE KIT

• 51015    22-23 TUNDRA / 23 SEQUOIA 6" COILOVER SPACER KIT

• 51016    22-23 TUNDRA REAR COIL SPACER KIT

• 51017    22-23 TUNDRA FRONT SKID PLATE

• 56517    22-23 TUNDRA 6" REAR 2.0 VS IR (2)

KEY FEATURES:

• Optimized design to fit 37" tires with full articulation (larger tires may fit but fender trimming and modifications will be required)

• Maintains factory track width

• Front coilover spacer kit with heavy-duty steel construction

• Provides 6" front suspension lift with only 4" of cross member drop

• Single-piece high-strength ductile iron steering knuckles

• Hight clearance front cross members and front skid plate, CNC Laser Cut and brake-formed from 1/4-inch steel plate

• Included sway bar drop brackets reduce bind in OE sway bar links

• Front and rear heavy-duty bump stop brackets

• High angle outer tie-roads feature durable, metal-on-metal greaseable tie rod ends

• 2.0 Aluminum Series rear shocks to improve rear suspension performance

• Rear coil spring spacer kit to provide lift while retaining factory rear coil springs

• Improved rear sway bar links and mounts, and rear track bar bracket to reduce bind in the rear suspension

*BOX KITS INCLUDE (APPLIES TO ALL STAGES):

51010    22-23 TUNDRA FRONT BOX KIT 1

• Front Crossmember

• Rear Crossmember

51011    22-23 TUNDRA FRONT BOX KIT 2

• Sway Bar Drop

• Brake Line Brackets

• Outer Tie Rods

• Bump Extensions

51012    22-23 TUNDRA REAR BOX KIT

• Brake Line Brackets

• Track Bar Bracket

• Sway Bar Link Mounts

• Foam Axle Pads

Stage 2

K53272T   22-23 TOYOTA TUNDRA 6" STAGE 2 SUSPENSION SYSTEM TUBULAR

K53272     22-23 TOYOTA TUNDRA 6" STAGE 2 SUSPENSION SYSTEM BILLET

SYSTEMS INCLUDE

• 51010    22-23 TUNDRA FRONT BOX KIT 1*

• 51011    22-23 TUNDRA FRONT BOX KIT 2*

• 51012    22-23 TUNDRA REAR BOX KIT*

• 51014    22-23 TUNDRA FRONT KNUCKLE KIT

• 58672    22-23 TUNDRA 2.5 VS IR 6" COILOVER KIT

• 51016    22-23 TUNDRA REAR COIL SPACER KIT

• 51017    22-23 TUNDRA FRONT SKID PLATE

• 58461DJ    22-23 TUNDRA/23 SEQUOIA TUBULAR UCA DJ PRO KIT or 58561DJ    22-23 TUNDRA/23 SEQUOIA BILLET UCA DJ PRO KIT

• 56517    22-23 TUNDRA 6" REAR 2.0 VS IR (2)

KEY FEATURES:

• 2.5 Series front coilovers with remote reservoirs for superior damping and vehicle control

• System allows for up to 40% increase in front wheel travel over stock without overstressing OE components

• Optimized design to fit 37" tires with full articulation (larger tires may fit but fender trimming and modifications will be required)

• Maintains factory track width

• Optimized suspension geometry nearly eliminates the bump steer found in stock Tundras

• Adjustable front ride heights from 5-6” of front lift over stock (up to 6" of lift with only 4" of cross member drop)

• Tubular or billet aluminum UCAs with Delta Joint Pro for added strength, durability, and caster correction; billet UCAs provide on-vehicle caster/camber adjustment for optimum drivability

• Patented Delta Joint Pro (U.S. Pat. 10,731,700) provides improved durability and serviceability with 90 degrees of total articulation

• Single-piece high-strength ductile iron steering knuckles

• Hight clearance front cross members and front skid plate, CNC Laser Cut and brake-formed from 1/4-inch steel plate

• Included sway bar drop brackets reduce bind in OE sway bar links

• Front and rear heavy-duty bump stop brackets

• High angle outer tie-roads feature durable, metal-on-metal greaseable tie rod ends

• 2.0 Aluminum Series rear shocks provide balanced tune with the front coilovers

• Rear coil spring spacer kit to provide lift while retaining factory rear coil springs

• Improved rear sway bar links and mounts, and rear track bar bracket to reduce bind in the rear suspension

Stage 3

K53273T   22-23 TOYOTA TUNDRA 6" STAGE 3 SUSPENSION SYSTEM TUBULAR

K53273     22-23 TOYOTA TUNDRA 6" STAGE 3 SUSPENSION SYSTEM BILLET

SYSTEMS INCLUDE

• 51010    22-23 TUNDRA FRONT BOX KIT 1*

• 51011    22-23 TUNDRA FRONT BOX KIT 2*

• 51012    22-23 TUNDRA REAR BOX KIT*

• 51014    22-23 TUNDRA FRONT KNUCKLE KIT

• 58771    22-23 TUNDRA 2.5 VS RR 6" COILOVER KIT

• 51016    22-23 TUNDRA REAR COIL SPACER KIT

• 58461DJ    22-23 TUNDRA/23 SEQUOIA TUBULAR UCA DJ PRO KIT or 58561DJ    22-23 TUNDRA/23 SEQUOIA BILLET UCA DJ PRO KIT

• 51017    22-23 TUNDRA FRONT SKID PLATE

• 56517R    22-23 TUNDRA 6" REAR 2.0 VS RR (2)

KEY FEATURES:

• 2.5 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling

• System allows for up to 40% increase in front wheel travel over stock without overstressing OE components

• Optimized design to fit 37" tires with full articulation (larger tires may fit but fender trimming and modifications will be required)

• Maintains factory track width

• Optimized suspension geometry nearly eliminates the bump steer found in stock Tundras

• Adjustable front ride heights from 5-6” of front lift over stock (up to 6" of lift with only 4" of cross member drop)

• Tubular or billet aluminum UCAs with Delta Joint Pro for added strength, durability, and caster correction; billet UCAs provide on-vehicle caster/camber adjustment for optimum drivability

• Patented Delta Joint Pro (U.S. Pat. 10,731,700) provides improved durability and serviceability with 90 degrees of total articulation

• Single-piece high-strength ductile iron steering knuckles

• Hight clearance front cross members and front skid plate, CNC Laser Cut and brake-formed from 1/4-inch steel plate

• Included sway bar drop brackets reduce bind in OE sway bar links

• Front and rear heavy-duty bump stop brackets

• High angle outer tie-roads feature durable, metal-on-metal greaseable tie rod ends

• 2.0 Aluminum Series rear shocks with remote reservoirs provide balanced tune with the front coilovers and increased fluid volume for better heat dissipation

• ICON-engineered custom triple rate rear coil springs provide progressive spring rates for a comfortable ride on-road as well as stability and control during aggressive off-road driving

• Improved rear sway bar links and mounts, and rear track bar bracket to reduce bind in the rear suspension

Stage 4

K53274T   22-23 TOYOTA TUNDRA 6" STAGE 4 SUSPENSION SYSTEM TUBLUAR

K53274     22-23 TOYOTA TUNDRA 6" STAGE 4 SUSPENSION SYSTEM BILLET

SYSTEMS INCLUDE

• 51010    22-23 TUNDRA FRONT BOX KIT 1*

• 51011    22-23 TUNDRA FRONT BOX KIT 2*

• 51012    22-23 TUNDRA REAR BOX KIT*

• 51014    22-23 TUNDRA FRONT KNUCKLE KIT

• 58771    22-23 TUNDRA 2.5 VS RR 6" COILOVER KIT

• 51013    22-23 TUNDRA REAR 3.5 COIL SPRING KIT

• 58461DJ    22-23 TUNDRA/23 SEQUOIA TUBULAR UCA DJ PRO KIT or 58561DJ    22-23 TUNDRA/23 SEQUOIA BILLET UCA DJ PRO KIT

• 51017    22-23 TUNDRA FRONT SKID PLATE

• 57841P    22-23 TUNDRA 6" REAR 2.5 VS RR PAIR

KEY FEATURES:

• 2.5 Series front coilovers and rear shocks with remote reservoirs for superior damping and vehicle control along with improved shock cooling

• System allows for up to 40% increase in front wheel travel over stock without overstressing OE components

• Optimized design to fit 37" tires with full articulation (larger tires may fit but fender trimming and modifications will be required)

• Maintains factory track width

• Optimized suspension geometry nearly eliminates the bump steer found in stock Tundras

• Adjustable front ride heights from 5-6” of front lift over stock (up to 6" of lift with only 4" of cross member drop)

• Tubular or billet aluminum UCAs with Delta Joint Pro for added strength, durability, and caster correction; billet UCAs provide on-vehicle caster/camber adjustment for optimum drivability

• Patented Delta Joint Pro (U.S. Pat. 10,731,700) provides improved durability and serviceability with 90 degrees of total articulation

• Single-piece high-strength ductile iron steering knuckles

• Hight clearance front cross members and front skid plate, CNC Laser Cut and brake-formed from 1/4-inch steel plate

• Included sway bar drop brackets reduce bind in OE sway bar links

• Front and rear heavy-duty bump stop brackets

• High angle outer tie-roads feature durable, metal-on-metal greaseable tie rod ends

• ICON-engineered custom triple rate rear coil springs provide progressive spring rates for a comfortable ride on-road as well as stability and control during aggressive off-road driving

• Improved rear sway bar links and mounts, and rear track bar bracket to reduce bind in the rear suspension

Stage 5

K53275T   22-23 TOYOTA TUNDRA 6" STAGE 5 SUSPENSION SYSTEM TUBLUAR

K53275     22-23 TOYOTA TUNDRA 6" STAGE 5 SUSPENSION SYSTEM BILLET

SYSTEMS INCLUDE

• 51010    22-23 TUNDRA FRONT BOX KIT 1*

• 51011    22-23 TUNDRA FRONT BOX KIT 2*

• 51012    22-23 TUNDRA REAR BOX KIT*

• 51014    22-23 TUNDRA FRONT KNUCKLE KIT

• 58771    22-23 TUNDRA 2.5 VS RR 6" COILOVER KIT

• 51013    22-23 TUNDRA REAR 3.5 COIL SPRING KIT

• 58461DJ    22-23 TUNDRA/23 SEQUOIA TUBULAR UCA DJ PRO KIT or 58561DJ    22-23 TUNDRA/23 SEQUOIA BILLET UCA DJ PRO KIT

• 54002    22-23 TUNDRA/23 SEQUOIA BILLET REAR LOWER LINK KIT

• 51017    22-23 TUNDRA FRONT SKID PLATE

• 57841P    22-23 TUNDRA 6" REAR 2.5 VS RR PAIR

KEY FEATURES:

• 2.5 Series front coilovers and rear shocks with remote reservoirs for superior damping and vehicle control along with improved shock cooling

• System allows for up to 40% increase in front wheel travel over stock without overstressing OE components

• Optimized design to fit 37" tires with full articulation (larger tires may fit but fender trimming and modifications will be required)

• Maintains factory track width

• Optimized suspension geometry nearly eliminates the bump steer found in stock Tundras

• Adjustable front ride heights from 5-6” of front lift over stock (up to 6" of lift with only 4" of cross member drop)

• Tubular or billet aluminum UCAs with Delta Joint Pro for added strength, durability, and caster correction; billet UCAs provide on-vehicle caster/camber adjustment for optimum drivability

• Patented Delta Joint Pro (U.S. Pat. 10,731,700) provides improved durability and serviceability with 90 degrees of total articulation

• Single-piece high-strength ductile iron steering knuckles

• Hight clearance front cross members and front skid plate, CNC Laser Cut and brake-formed from 1/4-inch steel plate

• Included sway bar drop brackets reduce bind in OE sway bar links

• Front and rear heavy-duty bump stop brackets

• High angle outer tie-roads feature durable, metal-on-metal greaseable tie rod ends

• ICON-engineered custom triple rate rear coil springs provide progressive spring rates for a comfortable ride on-road as well as stability and control during aggressive off-road driving

• High clearance billet rear lower links feature FK Rod Ends to improve rear end articulation and allow on-vehicle adjustment for different ride heights and pinion angles using ICON's double adjuster system; replaceable nylon rock sliders to protect the link from trail damage

• Improved rear sway bar links and mounts, and rear track bar bracket to reduce bind in the rear suspension

Stage 6

K53276T   22-23 TOYOTA TUNDRA 6" STAGE 6 SUSPENSION SYSTEM TUBLUAR

K53276     22-23 TOYOTA TUNDRA 6" STAGE 6 SUSPENSION SYSTEM BILLET

SYSTEMS INCLUDE

• 51010    22-23 TUNDRA FRONT BOX KIT 1*

• 51011    22-23 TUNDRA FRONT BOX KIT 2*

• 51012    22-23 TUNDRA REAR BOX KIT*

• 51014    22-23 TUNDRA FRONT KNUCKLE KIT

• 58771C    22-23 TUNDRA 2.5 VS RR CDCV 6" COILOVER KIT

• 51013    22-23 TUNDRA REAR 3.5 COIL SPRING KIT

• 58461DJ    22-23 TUNDRA/23 SEQUOIA TUBULAR UCA DJ PRO KIT or 58561DJ    22-23 TUNDRA/23 SEQUOIA BILLET UCA DJ PRO KIT

• 51017    22-23 TUNDRA FRONT SKID PLATE

• 57841CP    22-23 TUNDRA 6" REAR 2.5 VS CDCV RR PAIR

KEY FEATURES:

• 2.5 Series front coilovers and rear shocks with remote reservoirs for superior damping and vehicle control along with improved shock cooling

• System allows for up to 40% increase in front wheel travel over stock without overstressing OE components

• Optimized design to fit 37" tires with full articulation (larger tires may fit but fender trimming and modifications will be required)

• Maintains factory track width

• Optimized suspension geometry nearly eliminates the bump steer found in stock Tundras

• Adjustable front ride heights from 5-6” of front lift over stock (up to 6" of lift with only 4" of cross member drop)

• Tubular or billet aluminum UCAs with Delta Joint Pro for added strength, durability, and caster correction; billet UCAs provide on-vehicle caster/camber adjustment for optimum drivability

• Patented Delta Joint Pro (U.S. Pat. 10,731,700) provides improved durability and serviceability with 90 degrees of total articulation

• Single-piece high-strength ductile iron steering knuckles

• Hight clearance front cross members and front skid plate, CNC Laser Cut and brake-formed from 1/4-inch steel plate

• Included sway bar drop brackets reduce bind in OE sway bar links

• Front and rear heavy-duty bump stop brackets

• High angle outer tie-roads feature durable, metal-on-metal greaseable tie rod ends

• ICON-engineered custom triple rate rear coil springs provide progressive spring rates for a comfortable ride on-road as well as stability and control during aggressive off-road driving

• Improved rear sway bar links and mounts, and rear track bar bracket to reduce bind in the rear suspension

Stage 7

K53277T   22-23 TOYOTA TUNDRA 6" STAGE 7 SUSPENSION SYSTEM TUBLUAR

K53277     22-23 TOYOTA TUNDRA 6" STAGE 7 SUSPENSION SYSTEM BILLET

SYSTEMS INCLUDE

• 51010    22-23 TUNDRA FRONT BOX KIT 1*

• 51011    22-23 TUNDRA FRONT BOX KIT 2*

• 51012    22-23 TUNDRA REAR BOX KIT*

• 51014    22-23 TUNDRA FRONT KNUCKLE KIT

• 58771C    22-23 TUNDRA 2.5 VS RR CDCV 6" COILOVER KIT

• 51013    22-23 TUNDRA REAR 3.5 COIL SPRING KIT

• 58461DJ    22-23 TUNDRA/23 SEQUOIA TUBULAR UCA DJ PRO KIT or 58561DJ    22-23 TUNDRA/23 SEQUOIA BILLET UCA DJ PRO KIT

• 51017    22-23 TUNDRA FRONT SKID PLATE

• 57841CP    22-23 TUNDRA 6" REAR 2.5 VS CDCV RR PAIR

• 54002    22-23 TUNDRA/23 SEQUOIA BILLET REAR LOWER LINK KIT

• 54102    22-23 TUNDRA/23 SEQUOIA BILLET REAR UPPER LINK KIT

• 54202    22-23 TUNDRA/23 SEQUOIA BILLET REAR ADJ TRACK BAR KIT

KEY FEATURES:

• ICON's Compression Damping Electronic Valves (CDCV) provide easy manual adjustment of compression damping for each shock with 10 settings from soft to firm

• System allows for up to 40% increase in front wheel travel over stock without overstressing OE components

• Optimized design to fit 37" tires with full articulation (larger tires may fit but fender trimming and modifications will be required)

• Maintains factory track width

• Optimized suspension geometry nearly eliminates the bump steer found in stock Tundras

• 2.5 Series front coilovers and rear shocks with remote reservoirs for superior damping and vehicle control along with improved shock cooling

• Adjustable front ride heights from 5-6” of front lift over stock (up to 6" of lift with only 4" of cross member drop)

• Tubular or billet aluminum UCAs with Delta Joint Pro for added strength, durability, and caster correction; billet UCAs provide on-vehicle caster/camber adjustment for optimum drivability

• Patented Delta Joint Pro (U.S. Pat. 10,731,700) provides improved durability and serviceability with 90 degrees of total articulation

• Single-piece high-strength ductile iron steering knuckles

• Hight clearance front cross members and front skid plate, CNC Laser Cut and brake-formed from 1/4-inch steel plate

• Included sway bar drop brackets reduce bind in OE sway bar links

• Front and rear heavy-duty bump stop brackets

• High angle outer tie-roads feature durable, metal on metal greaseable tie rod ends

• ICON-engineered custom triple rate rear coil springs provide progressive spring rates for a comfortable ride on-road as well as stability and control during aggressive off-road driving

• Billet rear upper and high clearance lower links feature FK Rod Ends to improve rear end articulation and allow on-vehicle adjustment for different ride heights and pinion angles using ICON's double adjuster system

• Billet rear lower links have replaceable nylon rock sliders to protect the link from trail damage

• On-vehicle adjustable billet rear track bar properly centers rear axle while also improving rear suspension performance

• Improved rear sway bar links and mounts, and rear track bar bracket to reduce bind in the rear suspension

Stage 8

K53278T   22-23 TOYOTA TUNDRA 6" STAGE 8 SUSPENSION SYSTEM TUBLUAR

K53278     22-23 TOYOTA TUNDRA 6" STAGE 8 SUSPENSION SYSTEM BILLET

SYSTEMS INCLUDE

• 51010    22-23 TUNDRA FRONT BOX KIT 1*

• 51011    22-23 TUNDRA FRONT BOX KIT 2*

• 51012    22-23 TUNDRA REAR BOX KIT*

• 51014    22-23 TUNDRA FRONT KNUCKLE KIT

• 58771E    22-23 TUNDRA 2.5 VS RR CDEV 6" COILOVER KIT

• 51013    22-23 TUNDRA REAR 3.5 COIL SPRING KIT

• 58461DJ    22-23 TUNDRA/23 SEQUOIA TUBULAR UCA DJ PRO KIT or 58561DJ    22-23 TUNDRA/23 SEQUOIA BILLET UCA DJ PRO KIT

• 51017    22-23 TUNDRA FRONT SKID PLATE

• 57841EP    22-23 TUNDRA 6" REAR 2.5 VS CDEV RR PAIR

KEY FEATURES:

• ICON's Compression Damping Electronic Valve (CDEV) technology allows for in-vehicle adjustment of compression damping settings and active adjustment via IIC

• ICON Intelligent Control (IIC) uses onboard sensors to monitor G-forces and movement of vehicle chassis along with user-defined settings to actively make on-the-fly, near-instantaneous compression damping adjustments on CDEV-equipped shocks

• System allows for up to 40% increase in front wheel travel over stock without overstressing OE components

• Optimized design to fit 37" tires with full articulation (larger tires may fit but fender trimming and modifications will be required)

• Maintains factory track width

• Optimized suspension geometry nearly eliminates the bump steer found in stock Tundras

• 2.5 Series front coilovers and rear shocks with remote reservoirs for superior damping and vehicle control along with improved shock cooling

• Adjustable front ride heights from 5-6” of front lift over stock (up to 6" of lift with only 4" of cross member drop)

• Tubular or billet aluminum UCAs with Delta Joint Pro for added strength, durability, and caster correction; billet UCAs provide on-vehicle caster/camber adjustment for optimum drivability

• Patented Delta Joint Pro (U.S. Pat. 10,731,700) provides improved durability and serviceability with 90 degrees of total articulation

• Single-piece high-strength ductile iron steering knuckles

• Hight clearance front cross members and front skid plate, CNC Laser Cut and brake-formed from 1/4-inch steel plate

• Included sway bar drop brackets reduce bind in OE sway bar links

• Front and rear heavy-duty bump stop brackets

• High angle outer tie-roads feature durable, metal-on-metal greaseable tie rod ends

• ICON-engineered custom triple rate rear coil springs provide progressive spring rates for a comfortable ride on-road as well as stability and control during aggressive off-road driving

• Improved rear sway bar links and mounts, and rear track bar bracket to reduce bind in the rear suspension

Stage 9

K53279T   22-23 TOYOTA TUNDRA 6" STAGE 9 SUSPENSION SYSTEM TUBLUAR

K53279     22-23 TOYOTA TUNDRA 6" STAGE 9 SUSPENSION SYSTEM BILLET

SYSTEMS INCLUDE

• 51010    22-23 TUNDRA FRONT BOX KIT 1*

• 51011    22-23 TUNDRA FRONT BOX KIT 2*

• 51012    22-23 TUNDRA REAR BOX KIT*

• 51014    22-23 TUNDRA FRONT KNUCKLE KIT

• 58771E    22-23 TUNDRA 2.5 VS RR CDEV 6" COILOVER KIT

• 51013    22-23 TUNDRA REAR 3.5 COIL SPRING KIT

• 58461DJ    22-23 TUNDRA/23 SEQUOIA TUBULAR UCA DJ PRO KIT or 58561DJ    22-23 TUNDRA/23 SEQUOIA BILLET UCA DJ PRO KIT

• 51017    22-23 TUNDRA FRONT SKID PLATE

• 57841EP    22-23 TUNDRA 6" REAR 2.5 VS CDEV RR PAIR

• 53508    22-23 TUNDRA/23 SEQUOIA IIC INSTALL KIT

• 54002    22-23 TUNDRA/23 SEQUOIA BILLET REAR LOWER LINK KIT

• 54102    22-23 TUNDRA/23 SEQUOIA BILLET REAR UPPER LINK KIT

• 54202    22-23 TUNDRA/23 SEQUOIA BILLET REAR ADJ TRACK BAR KIT

KEY FEATURES:

• ICON's Compression Damping Electronic Valve (CDEV) technology allows for in-vehicle adjustment of compression damping settings and active adjustment via IIC

• ICON Intelligent Control (IIC) uses onboard sensors to monitor G-forces and movement of vehicle chassis along with user-defined settings to actively make on-the-fly, near-instantaneous compression damping adjustments on CDEV-equipped shocks

• System allows for up to 40% increase in front wheel travel over stock without overstressing OE components

• Optimized design to fit 37" tires with full articulation (larger tires may fit but fender trimming and modifications will be required)

• Maintains factory track width

• Optimized suspension geometry nearly eliminates the bump steer found in stock Tundras

• 2.5 Series front coilovers and rear shocks with remote reservoirs for superior damping and vehicle control along with improved shock cooling

• Adjustable front ride heights from 5-6” of front lift over stock (up to 6" of lift with only 4" of cross member drop)

• Tubular or billet aluminum UCAs with Delta Joint Pro for added strength, durability, and caster correction; billet UCAs provide on-vehicle caster/camber adjustment for optimum drivability

• Patented Delta Joint Pro (U.S. Pat. 10,731,700) provides improved durability and serviceability with 90 degrees of total articulation

• Single-piece high-strength ductile iron steering knuckles

• Hight clearance front cross members and front skid plate, CNC Laser Cut and brake-formed from 1/4-inch steel plate

• Included sway bar drop brackets reduce bind in OE sway bar links

• Front and rear heavy-duty bump stop brackets

• High angle outer tie-roads feature durable, metal-on-metal greaseable tie rod ends

• ICON-engineered custom triple rate rear coil springs provide progressive spring rates for a comfortable ride on-road as well as stability and control during aggressive off-road driving

• Billet rear upper and high clearance lower links feature FK Rod Ends to improve rear-end articulation and allow on-vehicle adjustment for different ride heights and pinion angles using ICON's double adjuster system

• Billet rear lower links have replaceable nylon rock sliders to protect the link from trail damage

• On-vehicle adjustable billet rear track bar properly centers rear axle while also improving rear suspension performance

• Improved rear sway bar links and mounts, and rear track bar bracket to reduce bind in the rear suspension

share this post:

ICON is proud to introduce a range of 6-inch Complete Suspension System "Stage" kits for 2022 and newer Toyota Tundra. All feature our high clearance 4-inch drop front crossmember kit including a differential skid plate and ductile iron steering knuckles. The cross member and knuckles drop the front differential 4 inches to preserve CV-joint operating angles, achieving maximum travel while being safe on components and providing great handling characteristics both on- and off-road.

We've pre-configured nine Stages of suspension systems to meet just about any level of performance expectations and budget. Spacer-based Stage 1 retains the stock front coilovers and rear springs to economically fit up to 37" tires. At the other end of the spectrum, our fully loaded Stage 9 features a full complement of billet control arms along with ICON 2.5 VS Coilovers and Shocks featuring cutting-edge CDEV electronic performance technology. Every Stage of our 6-inch Tundra Systems includes all of the necessary drop brackets, spacers, or mounts needed to allow bind-free movement of both the front and rear suspension to coax maximum performance out of every component in the kit.

KEY FEATURES

All ICON 6-Inch Subframe Suspension Systems for 2022 and newer Toyota Tundra feature:

• Designed to fit 37" tires with full articulation (larger tires may fit but fender trimming and modifications will be required)

• Optimized suspension geometry nearly eliminates the bump steer found in stock Tundras

• Maintains factory track width

• Hight clearance front crossmembers and front skid plate, CNC Laser Cut and brake-formed from 1/4-inch steel plate, provides 6" front suspension lift with only 4" of crossmember drop

• Single piece high-strength ductile iron steering knuckles

• Sway bar drop brackets to reduce bind in OE sway bar links

• Front and rear heavy-duty bump stop brackets

• Includes high angle outer tie-roads with durable, metal on metal greaseable tie rod ends

• Replaceable steering stops

• Improved rear sway bar links and mounts, and rear track bar bracket to reduce bind in the rear suspension

See additional equipment and more detailed information for each of the Nine Stages below.

TECH NOTES

The following tech and fitment data applies to all of these Suspension System Stages:

• OEM Wheels & Tires Fitment: No

• Recommended Aftermarket Wheels: ICON Alloys | 20x9" w/ 5.625” Backspace / 16mm Offset

• Recommended Aftermarket Tires: 37" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)

• APPLICATION NOTE #85: ADVERTISED LIFT HEIGHT RANGES ARE FOR A STOCK-EQUIPPED VEHICLE. INCREASING WEIGHT OF VEHICLE DUE TO ACCESSORIES WILL ALTER LIFT RANGE.

• APPLICATION NOTE #142: NOT COMPATIBLE WITH TUNDRAS EQUIPPED WITH LOAD-LEVELING REAR HEIGHT CONTROL AIR SUSPENSION.

• APPLICATION NOTE #144: NOT COMPATIBLE WITH TRD PRO (applies to Stage 1 only)

• APPLICATION NOTE #154: NOT COMPATIBLE WITH TUNDRA SR5 EQUIPPED WITH TRD SPORT PACKAGE (applies to Stage 1 only)

• APPLICATION NOTE #155: MAY REQUIRE RECALIBRATION OF TOYOTA SAFETY SENSE SYSTEM AFTER INSTALL

• APPLICATION NOTE NOT COMPATIBLE WITH AVS-equipped vehicles

• Ships in multiple boxes

Keep scrolling to see each of the Nine Stages or use the download buttons below to grab all of the important product information, data, images, and more to add these items to your website and inform your customers!

Stage 1

K53271     22-23 TOYOTA TUNDRA 6" STAGE 1 SUSPENSION SYSTEM

SYSTEMS INCLUDE

• 51010    22-23 TUNDRA FRONT BOX KIT 1*

• 51011    22-23 TUNDRA FRONT BOX KIT 2*

• 51012    22-23 TUNDRA REAR BOX KIT*

• 51014    22-23 TUNDRA FRONT KNUCKLE KIT

• 51015    22-23 TUNDRA / 23 SEQUOIA 6" COILOVER SPACER KIT

• 51016    22-23 TUNDRA REAR COIL SPACER KIT

• 51017    22-23 TUNDRA FRONT SKID PLATE

• 56517    22-23 TUNDRA 6" REAR 2.0 VS IR (2)

KEY FEATURES:

• Optimized design to fit 37" tires with full articulation (larger tires may fit but fender trimming and modifications will be required)

• Maintains factory track width

• Front coilover spacer kit with heavy-duty steel construction

• Provides 6" front suspension lift with only 4" of cross member drop

• Single-piece high-strength ductile iron steering knuckles

• Hight clearance front cross members and front skid plate, CNC Laser Cut and brake-formed from 1/4-inch steel plate

• Included sway bar drop brackets reduce bind in OE sway bar links

• Front and rear heavy-duty bump stop brackets

• High angle outer tie-roads feature durable, metal-on-metal greaseable tie rod ends

• 2.0 Aluminum Series rear shocks to improve rear suspension performance

• Rear coil spring spacer kit to provide lift while retaining factory rear coil springs

• Improved rear sway bar links and mounts, and rear track bar bracket to reduce bind in the rear suspension

*BOX KITS INCLUDE (APPLIES TO ALL STAGES):

51010    22-23 TUNDRA FRONT BOX KIT 1

• Front Crossmember

• Rear Crossmember

51011    22-23 TUNDRA FRONT BOX KIT 2

• Sway Bar Drop

• Brake Line Brackets

• Outer Tie Rods

• Bump Extensions

51012    22-23 TUNDRA REAR BOX KIT

• Brake Line Brackets

• Track Bar Bracket

• Sway Bar Link Mounts

• Foam Axle Pads

Stage 2

K53272T   22-23 TOYOTA TUNDRA 6" STAGE 2 SUSPENSION SYSTEM TUBULAR

K53272     22-23 TOYOTA TUNDRA 6" STAGE 2 SUSPENSION SYSTEM BILLET

SYSTEMS INCLUDE

• 51010    22-23 TUNDRA FRONT BOX KIT 1*

• 51011    22-23 TUNDRA FRONT BOX KIT 2*

• 51012    22-23 TUNDRA REAR BOX KIT*

• 51014    22-23 TUNDRA FRONT KNUCKLE KIT

• 58672    22-23 TUNDRA 2.5 VS IR 6" COILOVER KIT

• 51016    22-23 TUNDRA REAR COIL SPACER KIT

• 51017    22-23 TUNDRA FRONT SKID PLATE

• 58461DJ    22-23 TUNDRA/23 SEQUOIA TUBULAR UCA DJ PRO KIT or 58561DJ    22-23 TUNDRA/23 SEQUOIA BILLET UCA DJ PRO KIT

• 56517    22-23 TUNDRA 6" REAR 2.0 VS IR (2)

KEY FEATURES:

• 2.5 Series front coilovers with remote reservoirs for superior damping and vehicle control

• System allows for up to 40% increase in front wheel travel over stock without overstressing OE components

• Optimized design to fit 37" tires with full articulation (larger tires may fit but fender trimming and modifications will be required)

• Maintains factory track width

• Optimized suspension geometry nearly eliminates the bump steer found in stock Tundras

• Adjustable front ride heights from 5-6” of front lift over stock (up to 6" of lift with only 4" of cross member drop)

• Tubular or billet aluminum UCAs with Delta Joint Pro for added strength, durability, and caster correction; billet UCAs provide on-vehicle caster/camber adjustment for optimum drivability

• Patented Delta Joint Pro (U.S. Pat. 10,731,700) provides improved durability and serviceability with 90 degrees of total articulation

• Single-piece high-strength ductile iron steering knuckles

• Hight clearance front cross members and front skid plate, CNC Laser Cut and brake-formed from 1/4-inch steel plate

• Included sway bar drop brackets reduce bind in OE sway bar links

• Front and rear heavy-duty bump stop brackets

• High angle outer tie-roads feature durable, metal-on-metal greaseable tie rod ends

• 2.0 Aluminum Series rear shocks provide balanced tune with the front coilovers

• Rear coil spring spacer kit to provide lift while retaining factory rear coil springs

• Improved rear sway bar links and mounts, and rear track bar bracket to reduce bind in the rear suspension

Stage 3

K53273T   22-23 TOYOTA TUNDRA 6" STAGE 3 SUSPENSION SYSTEM TUBULAR

K53273     22-23 TOYOTA TUNDRA 6" STAGE 3 SUSPENSION SYSTEM BILLET

SYSTEMS INCLUDE

• 51010    22-23 TUNDRA FRONT BOX KIT 1*

• 51011    22-23 TUNDRA FRONT BOX KIT 2*

• 51012    22-23 TUNDRA REAR BOX KIT*

• 51014    22-23 TUNDRA FRONT KNUCKLE KIT

• 58771    22-23 TUNDRA 2.5 VS RR 6" COILOVER KIT

• 51016    22-23 TUNDRA REAR COIL SPACER KIT

• 58461DJ    22-23 TUNDRA/23 SEQUOIA TUBULAR UCA DJ PRO KIT or 58561DJ    22-23 TUNDRA/23 SEQUOIA BILLET UCA DJ PRO KIT

• 51017    22-23 TUNDRA FRONT SKID PLATE

• 56517R    22-23 TUNDRA 6" REAR 2.0 VS RR (2)

KEY FEATURES:

• 2.5 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling

• System allows for up to 40% increase in front wheel travel over stock without overstressing OE components

• Optimized design to fit 37" tires with full articulation (larger tires may fit but fender trimming and modifications will be required)

• Maintains factory track width

• Optimized suspension geometry nearly eliminates the bump steer found in stock Tundras

• Adjustable front ride heights from 5-6” of front lift over stock (up to 6" of lift with only 4" of cross member drop)

• Tubular or billet aluminum UCAs with Delta Joint Pro for added strength, durability, and caster correction; billet UCAs provide on-vehicle caster/camber adjustment for optimum drivability

• Patented Delta Joint Pro (U.S. Pat. 10,731,700) provides improved durability and serviceability with 90 degrees of total articulation

• Single-piece high-strength ductile iron steering knuckles

• Hight clearance front cross members and front skid plate, CNC Laser Cut and brake-formed from 1/4-inch steel plate

• Included sway bar drop brackets reduce bind in OE sway bar links

• Front and rear heavy-duty bump stop brackets

• High angle outer tie-roads feature durable, metal-on-metal greaseable tie rod ends

• 2.0 Aluminum Series rear shocks with remote reservoirs provide balanced tune with the front coilovers and increased fluid volume for better heat dissipation

• ICON-engineered custom triple rate rear coil springs provide progressive spring rates for a comfortable ride on-road as well as stability and control during aggressive off-road driving

• Improved rear sway bar links and mounts, and rear track bar bracket to reduce bind in the rear suspension

Stage 4

K53274T   22-23 TOYOTA TUNDRA 6" STAGE 4 SUSPENSION SYSTEM TUBLUAR

K53274     22-23 TOYOTA TUNDRA 6" STAGE 4 SUSPENSION SYSTEM BILLET

SYSTEMS INCLUDE

• 51010    22-23 TUNDRA FRONT BOX KIT 1*

• 51011    22-23 TUNDRA FRONT BOX KIT 2*

• 51012    22-23 TUNDRA REAR BOX KIT*

• 51014    22-23 TUNDRA FRONT KNUCKLE KIT

• 58771    22-23 TUNDRA 2.5 VS RR 6" COILOVER KIT

• 51013    22-23 TUNDRA REAR 3.5 COIL SPRING KIT

• 58461DJ    22-23 TUNDRA/23 SEQUOIA TUBULAR UCA DJ PRO KIT or 58561DJ    22-23 TUNDRA/23 SEQUOIA BILLET UCA DJ PRO KIT

• 51017    22-23 TUNDRA FRONT SKID PLATE

• 57841P    22-23 TUNDRA 6" REAR 2.5 VS RR PAIR

KEY FEATURES:

• 2.5 Series front coilovers and rear shocks with remote reservoirs for superior damping and vehicle control along with improved shock cooling

• System allows for up to 40% increase in front wheel travel over stock without overstressing OE components

• Optimized design to fit 37" tires with full articulation (larger tires may fit but fender trimming and modifications will be required)

• Maintains factory track width

• Optimized suspension geometry nearly eliminates the bump steer found in stock Tundras

• Adjustable front ride heights from 5-6” of front lift over stock (up to 6" of lift with only 4" of cross member drop)

• Tubular or billet aluminum UCAs with Delta Joint Pro for added strength, durability, and caster correction; billet UCAs provide on-vehicle caster/camber adjustment for optimum drivability

• Patented Delta Joint Pro (U.S. Pat. 10,731,700) provides improved durability and serviceability with 90 degrees of total articulation

• Single-piece high-strength ductile iron steering knuckles

• Hight clearance front cross members and front skid plate, CNC Laser Cut and brake-formed from 1/4-inch steel plate

• Included sway bar drop brackets reduce bind in OE sway bar links

• Front and rear heavy-duty bump stop brackets

• High angle outer tie-roads feature durable, metal-on-metal greaseable tie rod ends

• ICON-engineered custom triple rate rear coil springs provide progressive spring rates for a comfortable ride on-road as well as stability and control during aggressive off-road driving

• Improved rear sway bar links and mounts, and rear track bar bracket to reduce bind in the rear suspension

Stage 5

K53275T   22-23 TOYOTA TUNDRA 6" STAGE 5 SUSPENSION SYSTEM TUBLUAR

K53275     22-23 TOYOTA TUNDRA 6" STAGE 5 SUSPENSION SYSTEM BILLET

SYSTEMS INCLUDE

• 51010    22-23 TUNDRA FRONT BOX KIT 1*

• 51011    22-23 TUNDRA FRONT BOX KIT 2*

• 51012    22-23 TUNDRA REAR BOX KIT*

• 51014    22-23 TUNDRA FRONT KNUCKLE KIT

• 58771    22-23 TUNDRA 2.5 VS RR 6" COILOVER KIT

• 51013    22-23 TUNDRA REAR 3.5 COIL SPRING KIT

• 58461DJ    22-23 TUNDRA/23 SEQUOIA TUBULAR UCA DJ PRO KIT or 58561DJ    22-23 TUNDRA/23 SEQUOIA BILLET UCA DJ PRO KIT

• 54002    22-23 TUNDRA/23 SEQUOIA BILLET REAR LOWER LINK KIT

• 51017    22-23 TUNDRA FRONT SKID PLATE

• 57841P    22-23 TUNDRA 6" REAR 2.5 VS RR PAIR

KEY FEATURES:

• 2.5 Series front coilovers and rear shocks with remote reservoirs for superior damping and vehicle control along with improved shock cooling

• System allows for up to 40% increase in front wheel travel over stock without overstressing OE components

• Optimized design to fit 37" tires with full articulation (larger tires may fit but fender trimming and modifications will be required)

• Maintains factory track width

• Optimized suspension geometry nearly eliminates the bump steer found in stock Tundras

• Adjustable front ride heights from 5-6” of front lift over stock (up to 6" of lift with only 4" of cross member drop)

• Tubular or billet aluminum UCAs with Delta Joint Pro for added strength, durability, and caster correction; billet UCAs provide on-vehicle caster/camber adjustment for optimum drivability

• Patented Delta Joint Pro (U.S. Pat. 10,731,700) provides improved durability and serviceability with 90 degrees of total articulation

• Single-piece high-strength ductile iron steering knuckles

• Hight clearance front cross members and front skid plate, CNC Laser Cut and brake-formed from 1/4-inch steel plate

• Included sway bar drop brackets reduce bind in OE sway bar links

• Front and rear heavy-duty bump stop brackets

• High angle outer tie-roads feature durable, metal-on-metal greaseable tie rod ends

• ICON-engineered custom triple rate rear coil springs provide progressive spring rates for a comfortable ride on-road as well as stability and control during aggressive off-road driving

• High clearance billet rear lower links feature FK Rod Ends to improve rear end articulation and allow on-vehicle adjustment for different ride heights and pinion angles using ICON's double adjuster system; replaceable nylon rock sliders to protect the link from trail damage

• Improved rear sway bar links and mounts, and rear track bar bracket to reduce bind in the rear suspension

Stage 6

K53276T   22-23 TOYOTA TUNDRA 6" STAGE 6 SUSPENSION SYSTEM TUBLUAR

K53276     22-23 TOYOTA TUNDRA 6" STAGE 6 SUSPENSION SYSTEM BILLET

SYSTEMS INCLUDE

• 51010    22-23 TUNDRA FRONT BOX KIT 1*

• 51011    22-23 TUNDRA FRONT BOX KIT 2*

• 51012    22-23 TUNDRA REAR BOX KIT*

• 51014    22-23 TUNDRA FRONT KNUCKLE KIT

• 58771C    22-23 TUNDRA 2.5 VS RR CDCV 6" COILOVER KIT

• 51013    22-23 TUNDRA REAR 3.5 COIL SPRING KIT

• 58461DJ    22-23 TUNDRA/23 SEQUOIA TUBULAR UCA DJ PRO KIT or 58561DJ    22-23 TUNDRA/23 SEQUOIA BILLET UCA DJ PRO KIT

• 51017    22-23 TUNDRA FRONT SKID PLATE

• 57841CP    22-23 TUNDRA 6" REAR 2.5 VS CDCV RR PAIR

KEY FEATURES:

• 2.5 Series front coilovers and rear shocks with remote reservoirs for superior damping and vehicle control along with improved shock cooling

• System allows for up to 40% increase in front wheel travel over stock without overstressing OE components

• Optimized design to fit 37" tires with full articulation (larger tires may fit but fender trimming and modifications will be required)

• Maintains factory track width

• Optimized suspension geometry nearly eliminates the bump steer found in stock Tundras

• Adjustable front ride heights from 5-6” of front lift over stock (up to 6" of lift with only 4" of cross member drop)

• Tubular or billet aluminum UCAs with Delta Joint Pro for added strength, durability, and caster correction; billet UCAs provide on-vehicle caster/camber adjustment for optimum drivability

• Patented Delta Joint Pro (U.S. Pat. 10,731,700) provides improved durability and serviceability with 90 degrees of total articulation

• Single-piece high-strength ductile iron steering knuckles

• Hight clearance front cross members and front skid plate, CNC Laser Cut and brake-formed from 1/4-inch steel plate

• Included sway bar drop brackets reduce bind in OE sway bar links

• Front and rear heavy-duty bump stop brackets

• High angle outer tie-roads feature durable, metal-on-metal greaseable tie rod ends

• ICON-engineered custom triple rate rear coil springs provide progressive spring rates for a comfortable ride on-road as well as stability and control during aggressive off-road driving

• Improved rear sway bar links and mounts, and rear track bar bracket to reduce bind in the rear suspension

Stage 7

K53277T   22-23 TOYOTA TUNDRA 6" STAGE 7 SUSPENSION SYSTEM TUBLUAR

K53277     22-23 TOYOTA TUNDRA 6" STAGE 7 SUSPENSION SYSTEM BILLET

SYSTEMS INCLUDE

• 51010    22-23 TUNDRA FRONT BOX KIT 1*

• 51011    22-23 TUNDRA FRONT BOX KIT 2*

• 51012    22-23 TUNDRA REAR BOX KIT*

• 51014    22-23 TUNDRA FRONT KNUCKLE KIT

• 58771C    22-23 TUNDRA 2.5 VS RR CDCV 6" COILOVER KIT

• 51013    22-23 TUNDRA REAR 3.5 COIL SPRING KIT

• 58461DJ    22-23 TUNDRA/23 SEQUOIA TUBULAR UCA DJ PRO KIT or 58561DJ    22-23 TUNDRA/23 SEQUOIA BILLET UCA DJ PRO KIT

• 51017    22-23 TUNDRA FRONT SKID PLATE

• 57841CP    22-23 TUNDRA 6" REAR 2.5 VS CDCV RR PAIR

• 54002    22-23 TUNDRA/23 SEQUOIA BILLET REAR LOWER LINK KIT

• 54102    22-23 TUNDRA/23 SEQUOIA BILLET REAR UPPER LINK KIT

• 54202    22-23 TUNDRA/23 SEQUOIA BILLET REAR ADJ TRACK BAR KIT

KEY FEATURES:

• ICON's Compression Damping Electronic Valves (CDCV) provide easy manual adjustment of compression damping for each shock with 10 settings from soft to firm

• System allows for up to 40% increase in front wheel travel over stock without overstressing OE components

• Optimized design to fit 37" tires with full articulation (larger tires may fit but fender trimming and modifications will be required)

• Maintains factory track width

• Optimized suspension geometry nearly eliminates the bump steer found in stock Tundras

• 2.5 Series front coilovers and rear shocks with remote reservoirs for superior damping and vehicle control along with improved shock cooling

• Adjustable front ride heights from 5-6” of front lift over stock (up to 6" of lift with only 4" of cross member drop)

• Tubular or billet aluminum UCAs with Delta Joint Pro for added strength, durability, and caster correction; billet UCAs provide on-vehicle caster/camber adjustment for optimum drivability

• Patented Delta Joint Pro (U.S. Pat. 10,731,700) provides improved durability and serviceability with 90 degrees of total articulation

• Single-piece high-strength ductile iron steering knuckles

• Hight clearance front cross members and front skid plate, CNC Laser Cut and brake-formed from 1/4-inch steel plate

• Included sway bar drop brackets reduce bind in OE sway bar links

• Front and rear heavy-duty bump stop brackets

• High angle outer tie-roads feature durable, metal on metal greaseable tie rod ends

• ICON-engineered custom triple rate rear coil springs provide progressive spring rates for a comfortable ride on-road as well as stability and control during aggressive off-road driving

• Billet rear upper and high clearance lower links feature FK Rod Ends to improve rear end articulation and allow on-vehicle adjustment for different ride heights and pinion angles using ICON's double adjuster system

• Billet rear lower links have replaceable nylon rock sliders to protect the link from trail damage

• On-vehicle adjustable billet rear track bar properly centers rear axle while also improving rear suspension performance

• Improved rear sway bar links and mounts, and rear track bar bracket to reduce bind in the rear suspension

Stage 8

K53278T   22-23 TOYOTA TUNDRA 6" STAGE 8 SUSPENSION SYSTEM TUBLUAR

K53278     22-23 TOYOTA TUNDRA 6" STAGE 8 SUSPENSION SYSTEM BILLET

SYSTEMS INCLUDE

• 51010    22-23 TUNDRA FRONT BOX KIT 1*

• 51011    22-23 TUNDRA FRONT BOX KIT 2*

• 51012    22-23 TUNDRA REAR BOX KIT*

• 51014    22-23 TUNDRA FRONT KNUCKLE KIT

• 58771E    22-23 TUNDRA 2.5 VS RR CDEV 6" COILOVER KIT

• 51013    22-23 TUNDRA REAR 3.5 COIL SPRING KIT

• 58461DJ    22-23 TUNDRA/23 SEQUOIA TUBULAR UCA DJ PRO KIT or 58561DJ    22-23 TUNDRA/23 SEQUOIA BILLET UCA DJ PRO KIT

• 51017    22-23 TUNDRA FRONT SKID PLATE

• 57841EP    22-23 TUNDRA 6" REAR 2.5 VS CDEV RR PAIR

KEY FEATURES:

• ICON's Compression Damping Electronic Valve (CDEV) technology allows for in-vehicle adjustment of compression damping settings and active adjustment via IIC

• ICON Intelligent Control (IIC) uses onboard sensors to monitor G-forces and movement of vehicle chassis along with user-defined settings to actively make on-the-fly, near-instantaneous compression damping adjustments on CDEV-equipped shocks

• System allows for up to 40% increase in front wheel travel over stock without overstressing OE components

• Optimized design to fit 37" tires with full articulation (larger tires may fit but fender trimming and modifications will be required)

• Maintains factory track width

• Optimized suspension geometry nearly eliminates the bump steer found in stock Tundras

• 2.5 Series front coilovers and rear shocks with remote reservoirs for superior damping and vehicle control along with improved shock cooling

• Adjustable front ride heights from 5-6” of front lift over stock (up to 6" of lift with only 4" of cross member drop)

• Tubular or billet aluminum UCAs with Delta Joint Pro for added strength, durability, and caster correction; billet UCAs provide on-vehicle caster/camber adjustment for optimum drivability

• Patented Delta Joint Pro (U.S. Pat. 10,731,700) provides improved durability and serviceability with 90 degrees of total articulation

• Single-piece high-strength ductile iron steering knuckles

• Hight clearance front cross members and front skid plate, CNC Laser Cut and brake-formed from 1/4-inch steel plate

• Included sway bar drop brackets reduce bind in OE sway bar links

• Front and rear heavy-duty bump stop brackets

• High angle outer tie-roads feature durable, metal-on-metal greaseable tie rod ends

• ICON-engineered custom triple rate rear coil springs provide progressive spring rates for a comfortable ride on-road as well as stability and control during aggressive off-road driving

• Improved rear sway bar links and mounts, and rear track bar bracket to reduce bind in the rear suspension

Stage 9

K53279T   22-23 TOYOTA TUNDRA 6" STAGE 9 SUSPENSION SYSTEM TUBLUAR

K53279     22-23 TOYOTA TUNDRA 6" STAGE 9 SUSPENSION SYSTEM BILLET

SYSTEMS INCLUDE

• 51010    22-23 TUNDRA FRONT BOX KIT 1*

• 51011    22-23 TUNDRA FRONT BOX KIT 2*

• 51012    22-23 TUNDRA REAR BOX KIT*

• 51014    22-23 TUNDRA FRONT KNUCKLE KIT

• 58771E    22-23 TUNDRA 2.5 VS RR CDEV 6" COILOVER KIT

• 51013    22-23 TUNDRA REAR 3.5 COIL SPRING KIT

• 58461DJ    22-23 TUNDRA/23 SEQUOIA TUBULAR UCA DJ PRO KIT or 58561DJ    22-23 TUNDRA/23 SEQUOIA BILLET UCA DJ PRO KIT

• 51017    22-23 TUNDRA FRONT SKID PLATE

• 57841EP    22-23 TUNDRA 6" REAR 2.5 VS CDEV RR PAIR

• 53508    22-23 TUNDRA/23 SEQUOIA IIC INSTALL KIT

• 54002    22-23 TUNDRA/23 SEQUOIA BILLET REAR LOWER LINK KIT

• 54102    22-23 TUNDRA/23 SEQUOIA BILLET REAR UPPER LINK KIT

• 54202    22-23 TUNDRA/23 SEQUOIA BILLET REAR ADJ TRACK BAR KIT

KEY FEATURES:

• ICON's Compression Damping Electronic Valve (CDEV) technology allows for in-vehicle adjustment of compression damping settings and active adjustment via IIC

• ICON Intelligent Control (IIC) uses onboard sensors to monitor G-forces and movement of vehicle chassis along with user-defined settings to actively make on-the-fly, near-instantaneous compression damping adjustments on CDEV-equipped shocks

• System allows for up to 40% increase in front wheel travel over stock without overstressing OE components

• Optimized design to fit 37" tires with full articulation (larger tires may fit but fender trimming and modifications will be required)

• Maintains factory track width

• Optimized suspension geometry nearly eliminates the bump steer found in stock Tundras

• 2.5 Series front coilovers and rear shocks with remote reservoirs for superior damping and vehicle control along with improved shock cooling

• Adjustable front ride heights from 5-6” of front lift over stock (up to 6" of lift with only 4" of cross member drop)

• Tubular or billet aluminum UCAs with Delta Joint Pro for added strength, durability, and caster correction; billet UCAs provide on-vehicle caster/camber adjustment for optimum drivability

• Patented Delta Joint Pro (U.S. Pat. 10,731,700) provides improved durability and serviceability with 90 degrees of total articulation

• Single-piece high-strength ductile iron steering knuckles

• Hight clearance front cross members and front skid plate, CNC Laser Cut and brake-formed from 1/4-inch steel plate

• Included sway bar drop brackets reduce bind in OE sway bar links

• Front and rear heavy-duty bump stop brackets

• High angle outer tie-roads feature durable, metal-on-metal greaseable tie rod ends

• ICON-engineered custom triple rate rear coil springs provide progressive spring rates for a comfortable ride on-road as well as stability and control during aggressive off-road driving

• Billet rear upper and high clearance lower links feature FK Rod Ends to improve rear-end articulation and allow on-vehicle adjustment for different ride heights and pinion angles using ICON's double adjuster system

• Billet rear lower links have replaceable nylon rock sliders to protect the link from trail damage

• On-vehicle adjustable billet rear track bar properly centers rear axle while also improving rear suspension performance

• Improved rear sway bar links and mounts, and rear track bar bracket to reduce bind in the rear suspension

share this post:

Recent News

Great American Crawl 2025 Schedule Announcement

Dec 04, 2024

New from Carli: 2014+ Ram Power Wagon, Carli-SPEC - Now Available!

Nov 19, 2024

New from ICON: 2024 Lexus GX550 Coilovers & Complete Suspension Systems

Nov 19, 2024

Categories

Related Tags
