4340 Chrome-Moly Axle, XJ/TJ/YJ RH inner, 27spl, uses 5-760X u/joint | ZA W38875 | RANDYS Worldwide

Product Details

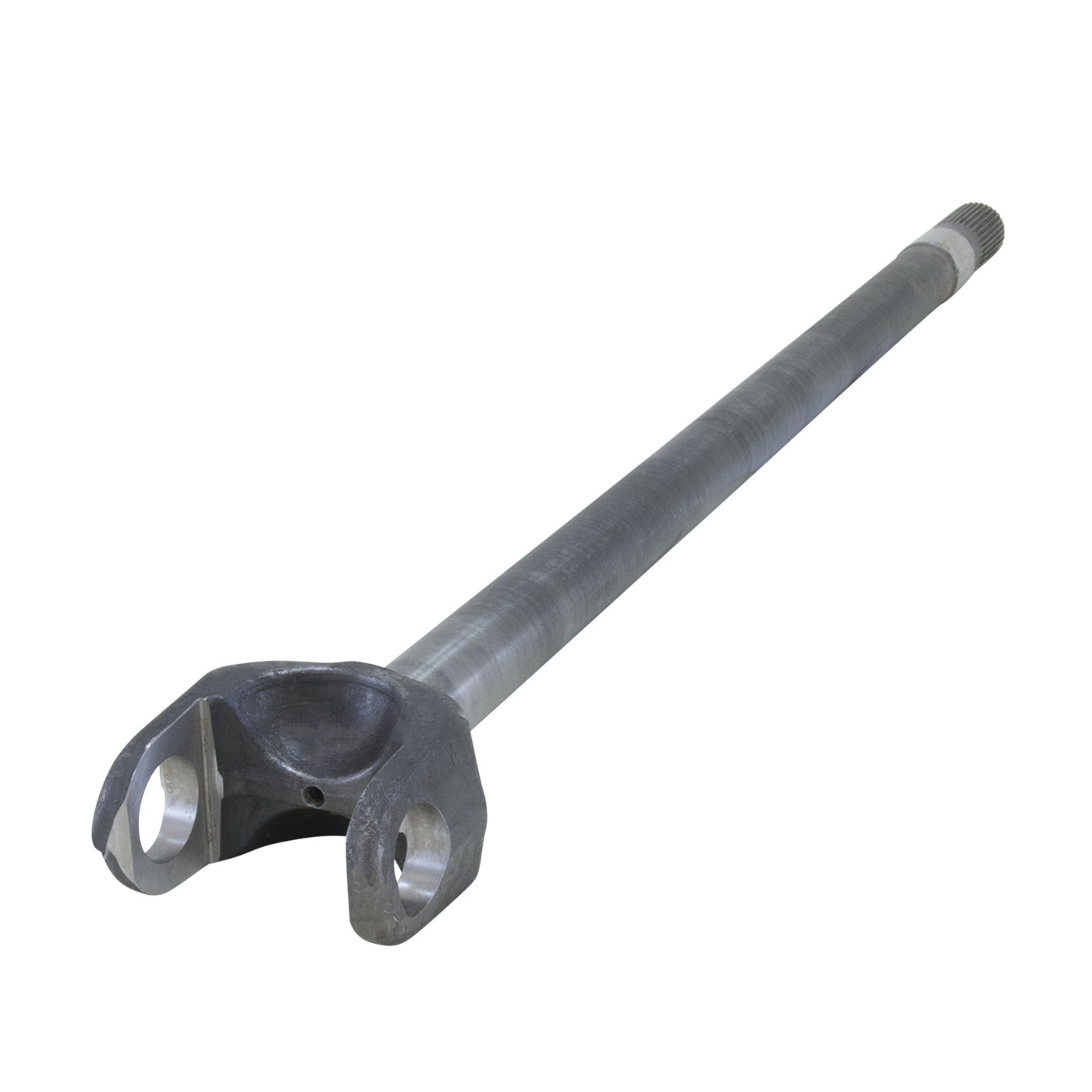

USA Standard Gear performance axles are constructed from high-tensile strength 4340 chromoly, use superior manufacturing methods, and feature advanced heat-treating technologies to create an axle of unparalleled quality and durability.

Fits Dana 30 front differential
27 spline
Measures 32.36” long from end of splines to center of u-joint bore
Inner RH axle
Heavy duty 4340 chromoly construction
Accepts 5-760X Series u-joint

Technical Notes

These axles use the larger 760X style u-joints. Older applications that use the 260X will require an upgrade to the outer stub axle as well.

Warranty Information

Warranty information unavailable

Compatible Make / Model

Compatible Differentials

Dana 30 Front, Crush Sleeve Design, TJ Wrangler

Specification

Brand	USA Standard Gear
Prop65 Warning	No
Keywords	01XJ,06WRGLR,27Spl,297X,32.36,4340,84,87,92,98,AXLE,D30,FRONT,INNR,RH,SHAFT,TJ,WRANGLER,XJ,ZA,ZJ
Technical Notes	These axles use the larger 760X style u-joints. Older applications that use the 260X will require an upgrade to the outer stub axle as well.
U Joint Size	5-760X
UPC	883584350828
ProxyNumber	35082
Width	4.00 in
Length	33.00 in
Depth	4.00 in
Weight	8.0000 lb
